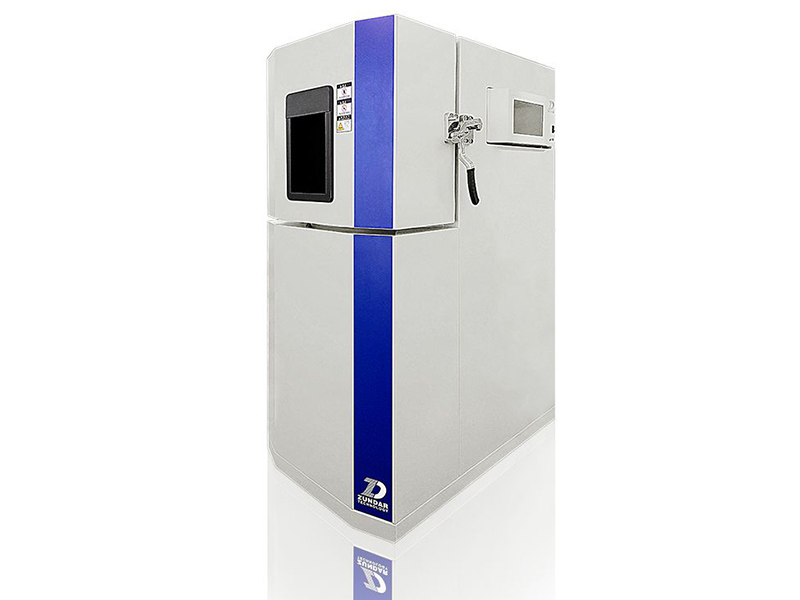

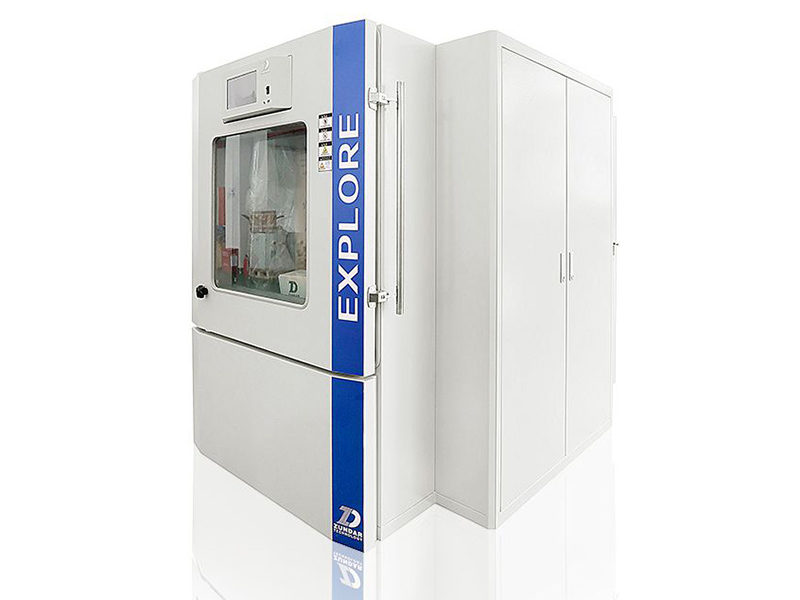

Sand & Dust Test Chamber

Simulation of blowing sand and dust for testing the protection against dust particles

Request a Quote

Ensure Optimal Dust Test with our Sand & Dust Test Chambers

Our sand and dust chambers are specifically designed to simulate sand and dust environments, enabling accurate evaluation of your products' ability to withstand challenging conditions and ensure optimal dust protection.

Our sand & dust test chambers assess the potential damage caused to various components, including locks, automotive parts, sealing elements, and power instruments. With our test chambers, you can confidently evaluate the reliability and durability of your offerings in dusty environments.

Optional Configurations

Cable holes with silicone plugs
Test specimen electrical switch control
External power sockets
LAN interface and remote control software

Specifications

Model		AZDU1000-B1	AZDU1000-B2	AZDU100-SP	AZDU2500-SP
Power Supply		AC 380V 50Hz three-phase + N + PE		AC 220V 50Hz two-phase + PE
Maximum Power		5KW	5KW	10KW	5KW
Operating Temperature/Humidity		+15℃+35℃/≤85%RH
Performance	Temperature Range	RT+5℃~50℃	RT+5℃~50℃		RT+5℃~50℃
	Dust Concentration	2kg/m³	2kg/m³	about 1kg	about 3kg
	Dust Specifications	dry talcum powder that can pass through a sieve hole of 75um with a metal diameter of 50um or ISO12103	dry talcum powder that can pass through a sieve hole of 75um with a metal diameter of 50um or ISO12103	ISO 12103 A1-A4	ISO 12103 A1-A4
	Test Airflow Velocity	≤2m/s	≤2m/s	1.5mm±0.1mm	1.5mm±0.1mm
	Dust Control	gap and circulation	gap and circulation	gap and circulation	gap and circulation
	Pressure Difference		≤-1.98KPa	550KPa±50KPa	550KPa±50KPa
	Separator Type	grate-type	grate-type	250	grate-type
	Separator Table Load Capacity	≤20kg	≤20kg	≤20kg	≤100kg
	Test Protection Rating	IP5X	IP5X, IP6X	IP5X	IP5X
Internal Volume (L)		1000	1000	100	2500
Internal Dimensions (mm)	W	1000	1000	500	2500
	D	1000	1000		1000
	H	1000	1000	500	1000
External Dimensions (mm)	W	1460	1460	960	3500
	D	1600	1600	800	1700
	H	1880	1880	1500	4000

Custom Sand and Dust Test Chamber

Our sand & dust test chambers come in four different forms, each designed to meet specific testing standards or customized according to your unique needs. Whether you require a specialized chamber for seat belt testing or one that meets the high-speed blowing sand and dust requirements of national military standards, we have the solution for you.

We also offer customizable sand & dust test chambers to meet your specific needs. Whether you require additional features, specific performance parameters, or unique test conditions, our expert team will work closely with you to create a tailored solution that aligns with your testing objectives.
