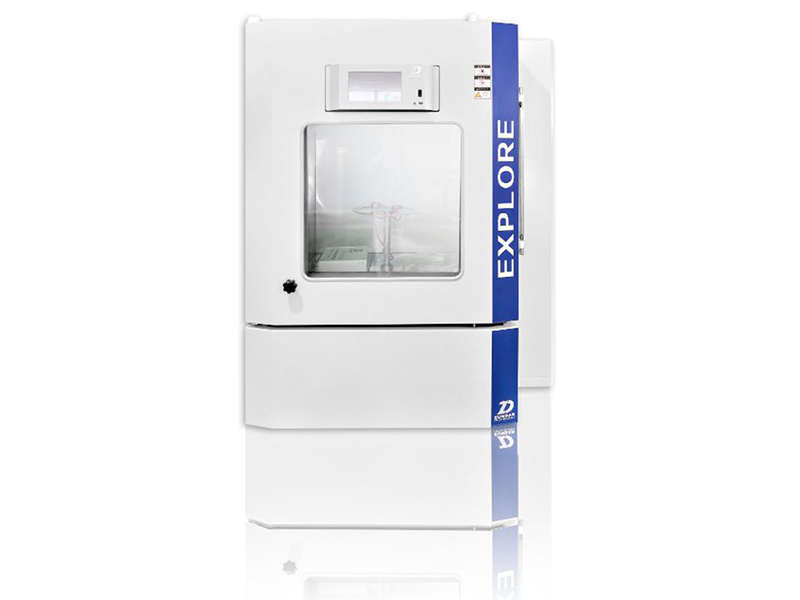

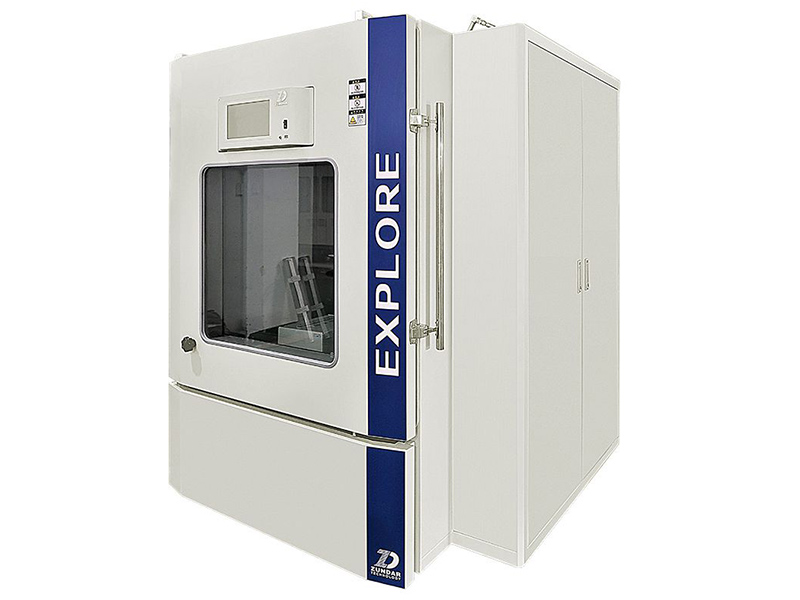

Rain Test Chamber

Simulation of rainy environment for water tightness testing
Rain Test Chamber
Rain Test Chamber Rain Test Chamber
Experience Superior Water Tightness Testing with our Rain Test Chambers

Our rain test chambers, also known as "box-type rain test chambers," are specifically designed to meet IPX3, IPX4, IPX5, and IPX6 ratings for water tightness. Rain test chambers are widely used in various industries, including electronics, aerospace, military, and research institutions, to assess the protective capabilities of external lighting, signal devices, and automotive lighting enclosures.

Our chambers provide realistic simulations of water spray and rainfall, allowing you to test the water resistance of electronic components and parts during transportation and usage, ensuring their reliability and performance.

Request a Quote

Our rain test chambers are available in nine different categories, with testing volumes ranging from 1 to 2 cubic meters, meeting standards such as IPX1, IPX2, IPX3, IPX4, IPX4K, IPX5, IPX6, IPX7, IPX8, IPX9K, JIS0203 S1, S2, R1, and R2.

  • Cable ports with silicone plugs
  • Electric lifting platform
  • 15-degree tilt platform
  • Experiment sample power switch control
  • External socket
  • LAN interface and remote control software
  • Water temperature range of RT+10°C to 80°C ±5°C
  • Manual lifting platform with slip ring and two-core cable (maximum 25A)
  • Manual lifting platform with slip ring and three-core cable (one core of 5A and two cores of 100A)
Specifications
Model AZRA1000-B1 AZRA1000-B2 AZRA1000-B3 AZRA1000-B4 AZRA1000-B5 AZRA1000-B6 AZRA1000-B7 AZRA1000-B8 AZRA1000-B9
Power supply AC 380V 50Hz three-phase + N + PE
Maximum Power 5KW 5KW 10KW 5KW 25KW 5KW 5KW 5KW 5KW
Operating Temperature/Humidity +15℃+35℃/≤85%RH
Performance Water Pressure 80KPa ~ 400KPa 30KPa ~ 1000KPa 8000KPa ~
10000KPa 		10KPa ~ 300KPa 10KPa ~ 400KPa 80KPa ~ 400KPa 10KPa ~
400KPa
Water Flow Rate 1mm/min ~
3mm/min 		0.1L/min ~
0.6L/min 		12L/min ~
75L/min ~
100L/min 		14L/min ~
16L/min 		1.9L/min ~
39.2L/min 		0.1L/min ~
0.6L/min 		0.1L/min ~
0.6L/min 		0.1L/min ~
0.6L/min
Immersion Depth 150mm ~ 1000mm
Swing Arm Radius 400mm 400mm 400mm 400mm
Swing Arm Radius 20mm 50mm 2500mm ~ 3000mm 400mm 20mm ~ 400mm 20mm ~ 400mm 20mm ~
400mm
Droplet Range 500mm*500mm 500mm*500mm 500mm*
500mm
Swing Arm Amplitude ±60° ~ ±170° 360° ±60° ~ ±170°
Swing Speed 60°/s 30°/s 23rmp 60°/s 60°/s 60°/s
Swing Arm Diameter 16mm
Test Table Diameter 400mm 400mm 1000*1000 400mm 400mm 400mm 400mm 400mm
Test Table Rotation Speed 1 ~ 10rmp 1 ~ 10rmp 1 ~ 10
rmp 		1 ~ 10
rmp 		1 ~ 10
rmp 		1 ~ 10
rmp 		1 ~ 10
rmp
Test Table Load Capacity ≤15kg ≤15kg ≤100kg ≤100kg ≤15kg ≤15kg ≤15kg ≤15kg ≤15kg
Test Protection Rating IPX,
IPX2 		IPX3,
IPX4, IPX4K 		IPX5,
IPX6 		IPX7,
IPX8 		IPX9 R1, R2, S1, S2 IPX3, IPX4,
IPX4K, R1,
R2, S1, S2 		IPX1, IPX2,
IPX3, IPX4,
IPX4K 		IPX1, IPX2,
IPX3, IPX4,
IPX4K, R1,
R2, S1, S2
Internal Volume (L) 1000 1000 1000 1000 1000 1000 1000 1000 1000
Internal Dimensions (mm) W 1000 1000 1000 1000 1000 1000 1000 1000 1000
D 1000 1000 1000 1000 1000 1000 1000 1000 1000
H 1000 1000 1000 1000 1000 1000 1000 1000 1000
External Dimensions (mm) W 1500 1500 4000 1500 1500 1500 1500 1500 1500
D 1450 1450 3000 1450 1450 1450 1450 1450 1450
H 2150 2050 3800 1800 2050 2050 2050 2150 2150
Applications

Rain test chambers are essential for assessing and ensuring the proper functioning of electrical, electronic products, and automotive components and seals after exposure to water.

Our equipment accurately simulates external rain conditions, allowing you to understand the impact of rain on your products. Please note that this test equipment simulates artificial rain testing and does not include rainfall with strong wind speeds or excessive water ingress caused by temperature difference between the sample and rainwater. It provides a reliable environment simulation and accelerated testing for scientific research, product development, and quality control purposes.

Custom Rain Test Chamber

In addition to our 1000L standard test chambers, ZUNDAR offers custom rain test chambers tailored to your specific requirements. We can customize the test chambers based on your desired standards and volume sizes.

Contact us to discuss your needs and we will create a tailored solution for your testing requirements.
